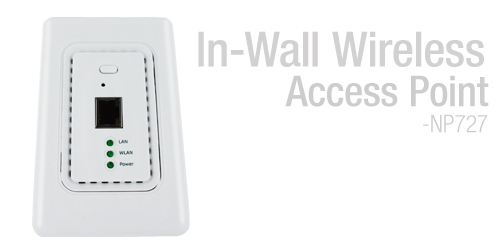

In-wall Wireless Access Point

The NP727 In-Wall Wireless Access Point is designed to blend in with any home or office interior in an unobtrusive and seamless manner. Once installed, the In-Wall Wireless Access Point can distribute your Internet connection through the built in Wireless G, Ethernet port or a combination of both.

The compact NP727, with its small form factor, fits nicely into a standard wall socket and hides the cutout with its faceplate. Its front panel features LED status indicators and an RJ-45 Ethernet port. The simplistic design allows it to blend into any living or working environment meaning you can set up an Internet access point anywhere in a clean and simple manner

By utilizing Power over Ethernet, the NP727 comes with the advantage of running fewer cables in the duct. The PoE LAN port serves as the power feed as well as the wired network feed. Optionally the NP727 can also be powered via an AC adapter when a PoE switch is not available.

The NP727 is an easy to install and a cost-effective solution for most indoor wireless deployments including hotel rooms, apartments, private homes, offices, classrooms, libraries and public kiosks to name just a few.

• Specially designed housing for in-wall installation
• Wireless G Access Point
• Ethernet port on the faceplate to connect PCs and other devices to the online network
• Ethernet port in the rear of the NP727 that supports IEEE 802.3af Power over Ethernet (PoE) and connects to the backbone network
• Wireless Distribution System (WDS) for extending wireless coverage
• Supports Quality of Service (QoS) and Wi-Fi Multimedia (WMM)
• Multiple SSID / Virtual AP support
• Business class wireless security and client authentications
• Wireless client layer 2 isolation


Reference materials

Visit the In-wall Wireless Access Point page on the NetComm website.
